Characteristics
A laminate bus bar is a board that restrains an abnormal voltage in a power circuit using power semiconductor elements such as IGBT and IPM at the time of high-speed switching, to improve characteristics when performing high-speed operations. We have achieved the following by laminating an insulation film sheet with a metal conductor.
- High-speed switching with reduction of inductance between conductors
- Rationalization of wiring and reduction of assembly time with reduction of the number of parts
- Reduction of the assembly space
- High reliability of electrical connection parts
- High partial discharge inception voltage level
In addition, a lightweight laminate bus bar with an aluminum conductor has been put to practical use to replace the general copper conductor.
Product name
Laminate bus bar (large current circuit board)
Structure

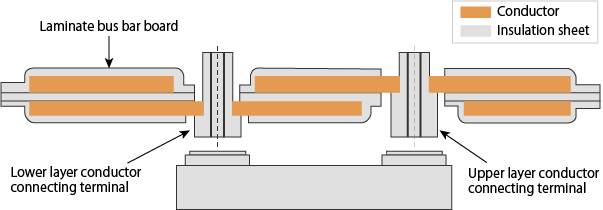

Example of dual-layer board The electrical connector can be removed from each layer in the terminal collar.
Electrical characteristics in standard design
| Copper conductor bus bar | Aluminum conductor bus bar | ||
| Rated voltage | DC 2800V or less | DC900V or less | |
| Current | 1750A or less | 400A or less | |
| Withstand voltage | AC8400V or less 60Hz in 1min | AC4100V or less | |
| Insulation resistance | 100MΩ or more (DC1000V mega) | ← | |
| Partial discharge inception voltage | AC800V(30pC) or more (With dual-layer board standard insulation structure) |
AC780V(10pC) or more (With dual-layer board standard insulation structure) |
|
| Conductor specifications | Conductor | JIS H3100 tough pitch copper Standard thickness t=1.0, 1.5, 2.0, 3.0 mm |
JIS H4000 pure aluminum Standard thickness t=1.0、3.0 mm |
| Connecting terminal |
Silver alloy brazing terminal collar, etc. | Crimping terminal collar, etc. | |
| Surface treatment |
Sn plating standard, Ni plating is also available |
Ni plating standard | |
| Insulator film | PET film composite base material, Aramid paper (The optimal insulation structure is obtained according to the required electrical characteristics) |
← | |
| Usage environment | Operating temperature range: -40 - 85℃ | ← | |
The above are basic specifications. Please contact us for variations according to your product specifications, structure, etc.
